My Beeman R7

I got this gun in stock form from a nice gentleman on the Yellow Forum Classifieds. It came with an upgraded set of fiber optic open sites that were quite nice, but I had other plans for this little beauty.

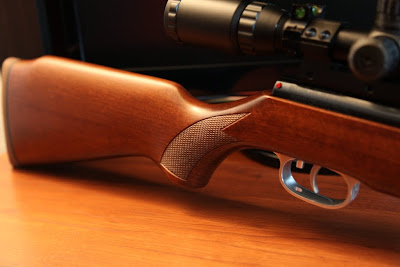

First thing I did was to mount a Centerpoint 3-9X40mm scope using an Accushot one piece medium scope mount. I later added a bubble level as well to help with rifle cant. Let me tell you, everything they say about these fine rifles is true. They stack pellets in one hole over and over again, at anything less than 30 yards. This springer rifle is almost boring to shoot, it's that accurate. The famous Rekord trigger that Beeman/HW are known for, makes this rifle's trigger a dream to use. Very light, smooth and short first stage with just the slightest 'bump' then any additional pressure and it breaks like a glass rod. It was set so light by the gentleman that sold it to me, it's almost scary to shoot, but I like it that way. I took it through it's paces and shot target after target and hit everything I aimed at. Just a bunch of tiny little ragged holes where I shot anywhere from 5-10 pellets through. This gun loves JSB Exacts in 8.4gr 4.52mm the best, I haven't found another pellet it likes as well as them. I just love everything about it, it's looks, it's very easy cocking stroke, it's accuracy, it's trigger and I could just go on and on about it. I would recommend this rifle to ANY first time springer user because it will make a believer out of you that springers can be gentle, smooth and accurate to shoot. If you've never tried one, it's a must. I guarantee you won't be disappointed. If you don't have one in your collection, you are missing the boat.

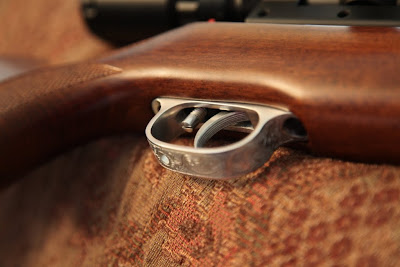

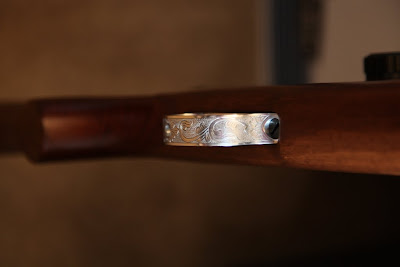

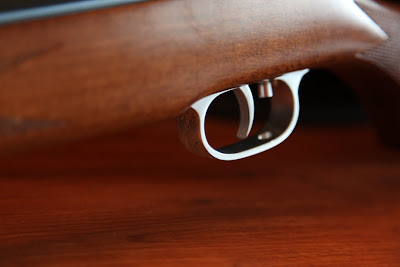

Over the next several months I added some custom upgrades to it as you can see. These upgrades include an engraved aluminum trigger guard by GinB, a MuzzleMack brake by Joe McAllister and a rear site cover plate by Tim Einck. I think they give the gun a touch of class and make my shooting experience even that much more enjoyable. She sure is pretty to look at now, don't you agree? I'm one happy camper indeed.

My Beeman R9 Double Gold

I picked this beauty up from the classifieds, the Beeman R9 Double Gold. I think it's a terrific looking gun overall with excellent bluing on the metal and a nice dark hardwood stock with checkering on the grip and forearm. The Double Gold package means it comes with a gold trigger and adjust screw, a nice looking muzzle brake to use as a cocking handle and a 3-9x32mm scope and mounts(this gun has no open sights). After cleaning the gun with a silcone cloth, I immediately swapped the 3-9x32mm scope that comes on the gun with a Tasco Varmint 2.5-10x42mm and a one piece mount. There, that's better!

I took the gun out back and shot about 50 rounds through it to see how I liked it. It's got a gentle cocking stroke for a rifle of this power. I was easily able to cock it throughout my shooting session without much strain. It's spitting out JSB Exacts 8.4gr(4.52mm) at around 840 FPS, which means she's a healthy specimen which I was glad to see. I sighted in the new scope on paper at 15 yards and shot some nice tiny groups with my new sweetheart. I was impressed with the accuracy and the shot cycle. I didn't notice much "twang" in the rifle as I have heard a few guys complain of. I actually thought it was quite tame considering. The trigger is all everyone says about them and then some. Very nice 2 stage trigger with a nice crisp break, no creep or over travel. Mine came set a tad heavier than I would like but I will adjust it to suit my preferences. I didn't find it to be particularly loud either and as with most springer rifles the majority of the sound comes from the spring and piston. After shooting some groups, I shot at my new Arimo field targets and had an absolute blast with the new gun. This one's a keeper fellas!

I had contacted Hyun Kim on the Yellow forum about purchasing a GinB engraved brass trigger guard for it as it's first "upgrade". I think it looks absolutely beautiful and I am very glad I got it. There are a few photos of the new brass guard below for you guys to check out, along with some photos of the rest of the gun.

All I can say right now is that I am a happy man! I got one more "new gun" to post about coming soon...

My Air Arms TX200 Mk3

I was lucky enough recently to get my hands on one of these fine rifles in a trade for one of my custom Crosman's. The rifle I am referring to is the Air Arms TX200 Mk3.

The gun I received was a barely used specimen(25 shots through it) and I would rate it at 99% overall condition. She shoots smooth and hard and spits out JSB Exacts 8.4gr(4.52mm) at a healthy 920FPS. The accuracy of these rifles is legendary, although I really need to get out to a range where I can use it at it's full potential. Stacking pellets on top of each other all day long at 15 yards is way too easy with this gun. I can now see why so many guys have won FT matches with them.

The trigger is phenomenal in every way. It's light, and breaks clean just like glass with very little over travel, if any. Very sweet just the way it came, I didn't even feel the need to adjust it.

The cocking effort is fairly stout but really smooth. I could see if you had shoulder or elbow problems that this gun may not be for you. I am able to cock the gun fairly easily, but my shoulder and elbow are healthy. It doesn't seem to bother most owners though. I found loading pretty easy as well. I have heard complaints of it being difficult to load but I didn't think so. I also didn't mind the anti bear trap release that you have to hold down to reset the lever to it's ready position. Not a big deal either. I liked the automatic safety feature, that is nice to have and you get used to clicking it before firing.

I was quite pleased to find out how quiet they really are. For a gun that is in this power range, it is very quiet IMHO, a pleasant surprise! My neighbors will be thankful lol.

The overall fit and finish of the rifle is impeccable. I have never owned such a beautiful and well made rifle up until now. The bluing is deep, dark and so highly polished it's like a mirror. The factory beech stock that mine came with is absolutely gorgeous, with intricate fish scale checkering on the grip and forearm. There is even a beautiful grip cap added for a touch of class. Nice stain and finish as well. Considering that this is a factory beech stock, I was very impressed with it. I am still interested in obtaining a walnut factory stock though, from the photos I've seen they are even nicer.

Here's a few photos of my new toy.

Saturday, April 9, 2011

Here's a cool little bit to add to your Quest, Mac1 Airgun's Brass Screw Cups

A while back I bought a couple sets of Mac1 Airgun's brass screw cups for my Crosman Quest and Beeman R9. I got them, thinking they would add a nice bit of brass accent to my rifles since they have some other brass bits already. For the $10 it costs per set, which includes everything you see in the package(2 brass screw cups, 2 short allen head bolts, 2 longer allen head bolts, 2 locking washers and an allen wrench), I though they were worth the price. They will fit many HW/Beeman/Chinese clone guns, but I do not have a complete list of exactly which guns they fit. I am positive they work in an R9/HW95/B26 and guns that use the same size front action screws as those do.

I decided to install them on my Quest first since it's a less expensive rifle and if anything went wrong I wouldn't be too upset about it. Tim explained to me how to use the 2 different sets of screws when installing them, although there are instructions included in the package. It was a piece of cake and I had no issues whatsoever with the install. First, remove the stock forward action screw from the gun and place the brass screw cup in the hole where the OEM screw was. Next, use the longer set of screws to draw the screw cup into the forearm of the stock by tightening the screw. Once the screw cup is seated you can remove the longer screw you used to draw the cup in. All that is left is to place the locking washer on one of the short screws and screw it into the screw cup and action until snug. Repeat this for the other side of the gun and then make sure to check the cocking action of your gun to ensure that the screws are not binding the cocking arm or action at all. If you find you have some contact in that area that is preventing the gun from cocking smoothly, you may need to remove a tiny bit of length from the screw to fix it. This wasn't an issue with my gun at all and everything worked smoothly with the screws included in the set.

I think they look nice on my gun and with them installed I find that those screws will stay put even after many rounds through the gun. The locking washers do their job and it makes sure that the action is very secure in the stock. Thanks for making these Tim, they work great!

Now I need to install them in my R9! :)

Friday, February 25, 2011

Another great tutorial from Robert(gubb33ps) on crowning barrels

Here's a REALLY handy tutorial from Robert(gubb33ps) on basic barrel re-crowning. This question gets asked a lot by modders, so here is some very good information on how to perform this mod. Thanks again Robert!


This adds on to the last post (which added on to the first post).

(Yes, do have a lathe and normally recrown with one. But for this, will recrown the simplest way; one that the average guy may feel is easy enough that they will attempt it. The good news is that no matter how you foul up, can always trim ¼ inch off the barrel and try again.)

This gun actually shoots well as it is, but am going to recrown it as a tutorial anyway (and if it shoots a little better, will count it as a bonus).

1.Get the front sight off. It is a plastic part, held on by just being a press-fit.
2.A block of wood makes the best removal tool. Ju8st make sure it is clean, slide it along the barrel, and smack the front sight.
[linked image]
3.The sight will pop off. Pick it up (undamaged) as I intend to reattach it after recrowning.
[linked image]
4.Notice how the barrel has a flat spot. The sight has a spot inside that matches that flat spot, so you'll be able to put it back on straight.
5.This is what the factory crown looked like. Pretty ugly, but the results of the previous tests weren't bad at all. Pretty is as pretty does, and even as ugly as this crown is, it shot pretty well.
[linked image]
6.Chuck a round headed BRASS screw into an electric drill.
[linked image]
7.Coat the brass screw with an abrasive compound. Can use automotive rubbing compound (not polish, the more abrasive rubbing compound for well oxidized paint), valve grinding compound, even COMET cleanser will work for this. I used a fine abrasive compound made for air bursh use when etching glass mixed with lithium grease because that is what I had.
8.Place the screwhead into the muzzle, run the drill at medium speed, and rotate the drill around in a figure 8 pattern.(understand, the screw head stays in contact with the bore, you pivot the drill around in that 8 pattern.)
[linked image]
9.Take a look every minute or so. Are not trying to remake the whole end of the barrel, just the edge of the bore. Even, smooth, and polished are the key words. This was done in about 90 seconds of polishing.
[linked image]
10.Clean the barrel.
11.Reattach the front sight. All I did was add a drop of glue and tap it back on with the same wooden block that was used to take it off.


Charged the rifle and fired 3 5-shot groups using the same H-point pellets used in the last test.

5-shot groups
Issue 'peepsights
[linked image]

Cannot honestly say it is definitively better, but it started out petty good. Can say it is not any worse, and is likely to test out to be better, but it will take more shooting to be definitive.

Someday, will put that steel breech on the gun,s cope it, and see what it can do. But for now, it is much better than I expected it to be and it is kind of fun having a 2260 that looks pure stock but shoots this well.

Other than the time to do the two mods, the only $ expended was $5 for a 4-40 tap (used in the trigger mod). Brings the cost up to $89 and about 90 mins. of my spare time.

Monday, February 7, 2011

Robert's(gubb33ps) excellent 2260 trigger tutorial

With Robert's(gubb33ps) permission, I want to post his trigger tutorial from the green right here on the blog so more people will get to see it. This is extremely useful if you have a new 2260/Discovery and want to get the trigger pull down to a nice crisp 2 stage feel. Follow this tutorial and you will give your gun a sweet trigger in no time for just pennies. Thanks Robert!

Dovetailing into this post:

Are several ways to do the trigger of a 2260 (or a Discovery as they use the same trigger system), but this way is simple enough not to scare off a new shooter. May be a bit more detailed that really needed, but am trying to avoid any surprises.


A simple 2-screw trigger mod should be pretty easy for the average guy. Once you have the tools laid out, it will take 30 min to do.

You are going to need the following:

1.A thin sharp pointed instrument (like an awl, but a heavy needle or thin nail will do).
2. Phillips screw driver to fit the stock screw.
3.Small slot screw driver to fit the trigger unit side plate.
4.4-40 tap (the drill and tap set is in a blister pack at HomeDepot for about $5-$6).
5.two 4-40 1 screws and nuts to fit
6.Something to shorten the 1 long 4-40 screws ( a Dremel tool, bench grinder, or even a hack saw and a file will do the trick just fine).

The reason for a 4-40 2-screw trigger job rather than a 3-screw is simple: the factory already drilled the two holes you need and the two holes are already the right size for a 4-40 tap. If you want to use larger 6-32 screws, are going to have to drill those holes slightly and use a 6-32 tap (buy a tap and drill bit together, they are sold in blister packs at Home Depot).

STEP 1: Get the rifle out of the stock.

The safety sticks out too far to allow you to take the metal work out of the stock. That safety runs on the tail end of a rat trap type spring.

You can see the tail end here:
[linked image]

1.Flip the rifle so the SMALL DIAMETER of the safety is ON TOP.
[linked image]
2.Use your awl (or thin nail) to pick up and slightly lift the tail end of that spring.
3.Safety button will fall out the other side.
[linked image]

With the safety out, can remove the phillips stock screw, and lift the metal work out of the stock.

Take a look around the trigger. On the back of the trigger housing there are already two (empty) holes in the plastic housing. Eventually, we're going to run a 4-40 tap into those holes and fit screws.
[linked image]

On one side, there is a side plate with two screws holding it on.
[linked image]
4.Take out the two screws and remove the cover plate.

5.Take a look at the trigger parts to remember where they all go. At this point, will usually take out my cell phone and snap a picture so I will be sure to get it back together right.
[linked image]
6.Remove the trigger parts leaving the trigger housing empty.
[linked image]
7.The holes in the back of the trigger unit are just about right for a 4-40 tap as they are, you won't need to drill them.
[linked image]
8.Fit the screws (with nuts already spun on) into the holes. Let them hang out, just putting them in right now so they won't get lost.
[linked image]
9.At this point, will grease the pivot holes and the pivot pins with white lithium grease. Can use any good grease, but as it is a plastic housing, tend to go with qa plastic safe grease.
[linked image]

Put all the parts of the trigger back in and put the side plate back on. It has to mate with the up ends of the 3 pivot pins and will just snap down once they line up.

[linked image]

Some people substitute a lighter weight trigger spring. I elected NOT to, but if you have the urge feel free to indulge.


10.You have to put the safety button back in even when the gun is out of the stock. The tail end of that spring runs the safety, but the top end runs the sear. Without the safety, there is no spring pressure on the sear, and the gun will not cock, so the safety has to go back in. The bottom screw limits how far back the trigger can pivot (backlash or over travel). The top screw limits the sear engagement. Start with the bottom screw.
11.Cock the gun and run the bottom screw in until you feel some resistance. Pull the trigger and it will not move enough to fire. Keep backing out the bottom screw while you pull the trigger until the trigger lets the sear trip and the gun fire.
[linked image]

12.Measure how much screw is between the nut and the screw head. This is how much you have to shorten the screw.
[linked image]
13.You really do not want the screw to be dead flush, will want to have a little adjustment in just in case things change over time, so do NOT shorten the screw the full amount. Subtract 1/10 or so to allow for some more in adjustment later on. I will measure, then color the end of the screw that has to be removed with a Marks-a-Lot. Make the end of the screw as flat and polished as you can.
[linked image]

14.The top screw sets the sear engagement. Cock the rifle and start slowly turning that screw in. At some point, the rifle will fire.
15.Back the screw out 2 full turns and try the trigger pull (two turns of a 4-40 screw would be 2/40 of an inch, or about 1/20 of an inch).

16.Shorten that screw just like you did in steps #12 and #13.
[linked image]
17.Take the safety back out.
18.Put the metal work back in the stock.
19.Put the safety back in.
20.Test the trigger pull. A good test to bounce the rifle on a carpeted floor a few times to see if it will fire.
21.Test the safety. Put the gun on safe, pull the trigger. If it fires, it fails. If after you've pull the trigger with the safety on, it fires when the saftey is clicked off, it fails.

Can fiddle around with the screws a fraction of a turn at a time, but do not expect a SAFE pull at much less than 1 pound. Will be a crisp little movement pull.

With some fiddling around and adjusting, the above trigger came out at 1.1 pound, no creep, and very little over travel.

So I had to test the difference a better trigger pull made, at least to the best of my peep sight ability.

The better choices from yesterday's test were retested today. Perhaps the better trigger pull really is the best accuracy mod.

Three 5-shot groups for each pellet.
30 shots on one 12gr.
(green construction paper used as a backer to better show holes for the photograph).

[linked image]
